🤖 Otto Sorting Bin

Project Overview: The Otto Sorting Bin is an autonomous waste management system designed to solve the problem of recycling contamination. By integrating YOLOv8 object detection with a custom T-Bot gantry mechanism, this project demonstrates how edge computing (Jetson Nano) can be used to identify, grasp, and sort waste materials in real-time.

Introduction

Waste management faces a critical bottleneck: the end-user. Most of society struggles to differentiate between trash and recyclables, leading to high contamination rates. When non-recyclables enter the recycling stream, it often results in entire batches being sent to landfills, contributing to environmental degradation and resource scarcity.

To address this, we developed the Otto Sorting Bin. Instead of relying on human decision-making, Otto utilizes artificial intelligence to detect objects placed within the bin and a mechanical claw to sort them into their respective compartments.

This post details the engineering journey, from the selection of the lightweight T-Bot architecture to the implementation of the X-Min search algorithm for prioritized sorting.

System Architecture

1. Hardware Design: The T-Bot Mechanism

We initially considered an H-Bot design, which operates in the X, Y, and Z planes. However, due to budget constraints and mechanical complexity, we opted for a T-Bot design. This mechanism restricts movement to the X-Y plane but significantly reduces hardware complexity and cost.

The system is powered by a NVIDIA Jetson Nano, which handles the heavy lifting of image processing and decision logic. It communicates via GPIO with motor drivers to control Nema 17 stepper motors for the gantry and an Arduino to control the servo motors for the claw mechanism.

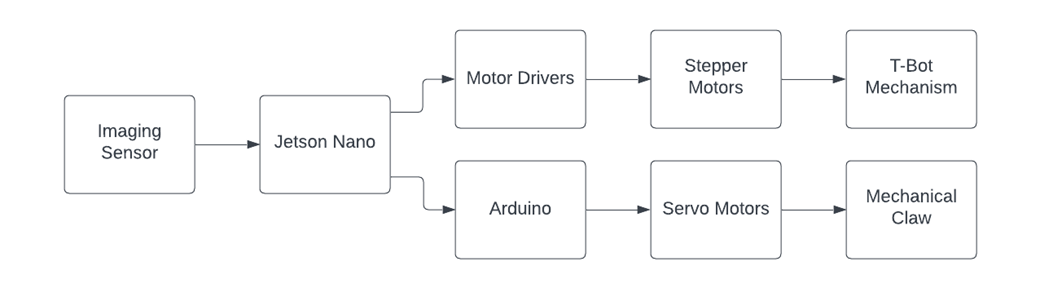

Figure 1: Hardware communication flow between the Jetson Nano, Stepper Drivers, and Arduino.

2. The Vision Model: YOLOv8n

For the “eyes” of the system, we utilized YOLOv8n (Nano). We chose the nano variant specifically for its efficiency on edge devices like the Jetson Nano. The model was fine-tuned on a custom dataset to detect specific trash and recyclable items within the bin’s environment.

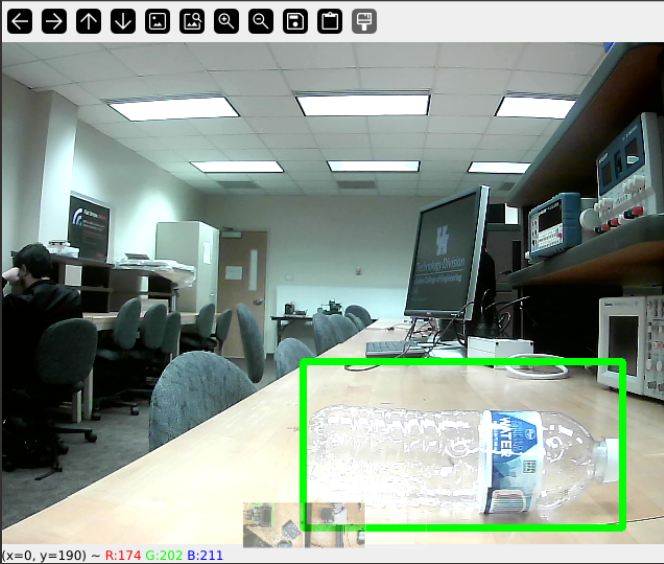

Figure 2: Custom YOLOv8 detection identifying recyclables in the bin environment.

Algorithm & Logic

1. Coordinate Mapping

A major challenge in robotics is translating camera pixels into physical motor steps. Since our camera is mounted above the sorting plane, we implemented a linear mapping equation to convert the target’s pixel coordinates \((t)\)into the stepper motor’s step coordinates\((x, y)\).

For the X-axis mapping, we derived the following relationship:

\[MaxSteps_x = m \cdot t + b \implies m = \frac{MaxSteps_x - b}{t}\]

Here, \(m\)is the conversion factor, and\(b\)represents the bias (offset) required to align the claw’s pressure point with the object. This ensures that when the vision system detects an object at pixel\(P\), the claw moves exactly to that location.

2. The X-Min Search Algorithm

Because the T-Bot design operates on a restricted plane, the claw cannot simply “jump” over objects; it must navigate around them or prioritize accessible items. To solve this, we developed the X-Min Algorithm.

The algorithm follows this logic:

1. Sense: Capture a frame and detect all objects.
2. Filter: Remove “blacklisted” objects (items previously deemed unreachable).
3. Search: Identify the target object closest to the claw’s resting position (minimizing travel time) that does not have obstructions in its path.
4. Execute: If a path is clear, attempt a grab. If the grab fails or the object is blocked, add it to the blacklist and retry.

Figure 3: The logic flow from initialization to object sensing and sorting.

Implementation Results

Cost & Efficiency

One of the project’s goals was affordability. By utilizing wood for the chassis, 3D-printed parts for the claw and mounts, and a T-Bot configuration, we achieved a total build cost of approximately $246.04.

Component	Cost ($)
Jetson Nano	50.00
Wood & Chassis	65.00
Motors & Drivers	34.00
Aluminum C-Channel	34.04
Total	246.04

Prototype Performance

The final prototype successfully demonstrated the ability to:

1. Initialize and calibrate the gantry system.
2. Detect waste items using the webcam.
3. Physically move the claw to the mapped coordinates.
4. Sort items into “Trash” or “Recycle” bins.

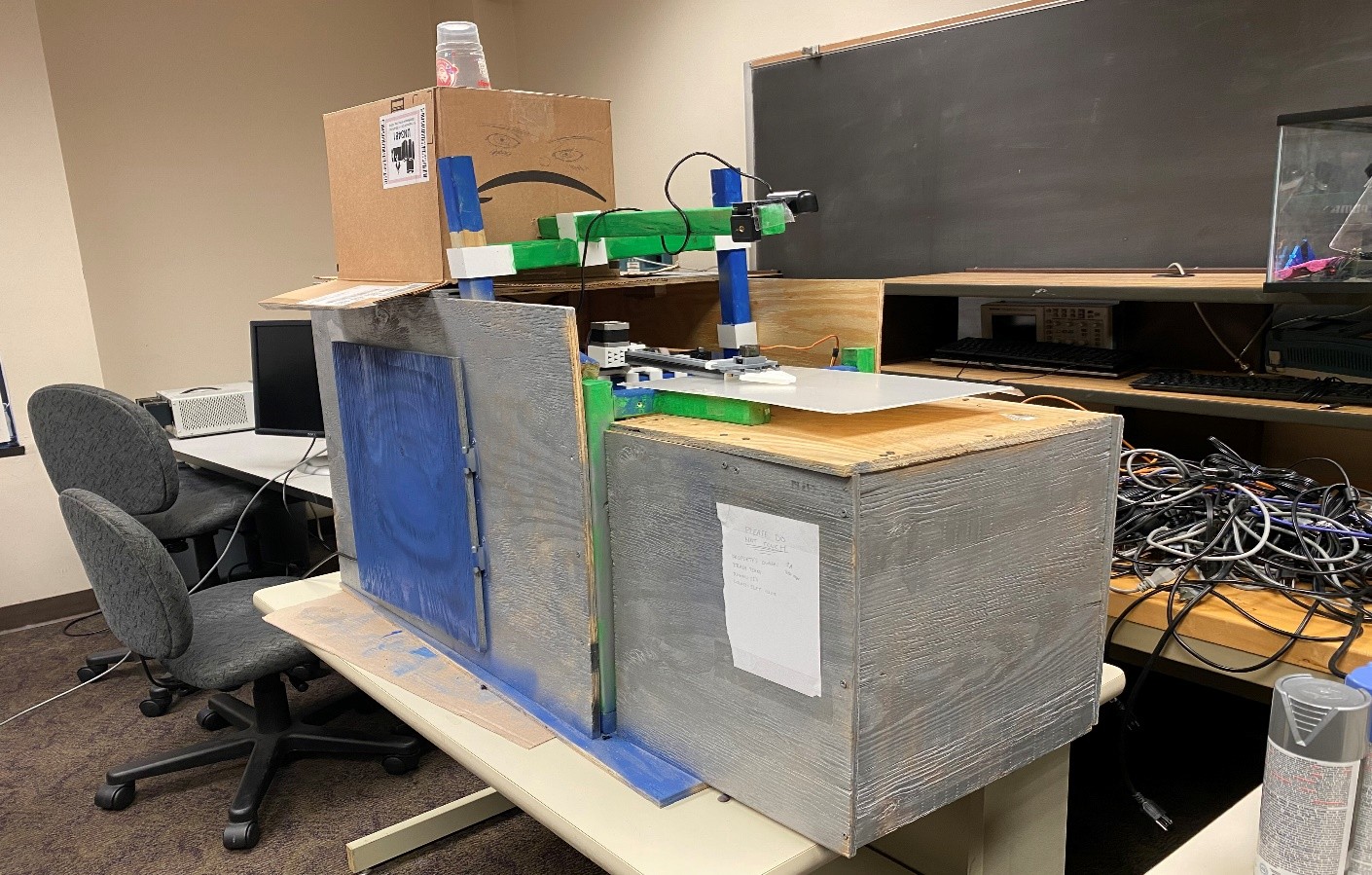

Figure 4: The fully constructed Otto Sorting Bin prototype.

Video Demo

Below is a commercial demonstrating the Otto Sorting Bin in action.

Novel Insights

Key Findings:

1. Hardware-Software Trade-off: Choosing the T-Bot (X-Y plane) over the H-Bot saved significant costs but increased algorithmic complexity. We had to write specific logic (the X-Min algorithm) to handle object occlusion, effectively trading hardware dollars for software development time.

2. The “Blacklist” Necessity: In a dynamic environment where grabs can fail, memory is crucial. Implementing an Intersection over Union (IoU) check allowed the system to remember which objects were “unreachable” or “failed grabs,” preventing the robot from getting stuck in infinite loops trying to pick up the same difficult item.

3. Edge Constraints: While YOLOv8n is lightweight, running it simultaneously with motor control logic on a Jetson Nano requires careful resource management. Future iterations would benefit from optimizing the model further or offloading non-critical tasks.

Conclusion

The Otto Sorting Bin proves that automated waste segregation is feasible using accessible hardware and modern computer vision techniques. While the prototype faced challenges regarding durability and power consumption (currently tethered to a wall outlet), it lays a solid foundation for smart waste management.

Future improvements include adding a “dump” mechanism for clearing the entire tray, upgrading to a wireless battery system, and expanding the dataset to handle a wider variety of waste materials.

---
